Scotland, UK

A723, HAMILTON

LED HIGH MAST REPLACEMENT SCHEME

The A723 Hamilton forms an important link between North and South Lanarkshire. Scotland Transerv, who held responsibility for managing the road, identified the need to upgrade the lighting from SON to LED for a number of reasons;

  • To improve performance
  • To illuminate to standard
  • To include a fully compliant electrical distribution system
  • To make energy savings
  • To reduce maintenance costs

TURNKEY SOLUTION


Our experienced and dedicated project team was able to offer a full turnkey solution with all team members being fully trained, qualified and competent through CITB and HERS accredited schemes.

CU Phosco was appointed as the main contractor on the project and was responsible for the full design & build, including the provision of;

  • Traffic Management
  • Geotechnical and Site Investigations
  • Lighting Design
  • Electrical Design
  • Structural Design
  • Foundation
  • Screw Piling
  • Trenching
  • High Mast, Lighting, Cabling & Feeder Pillar Installations
  • Concrete Testing
  • Electrical Testing

RESULTS AND BENEFITS

It was important to minimise distribution to the busy A road, so the project, from design to completion, was finished within 15 weeks.

Our breadth and depth of luminaires allowed us to use a combination of products to best meet the needs of the scheme.

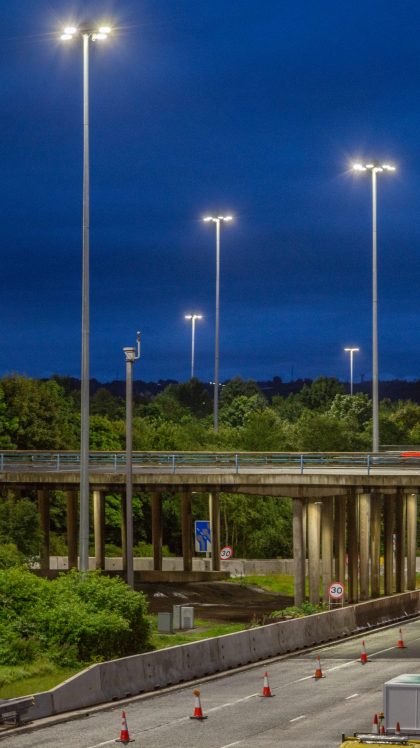

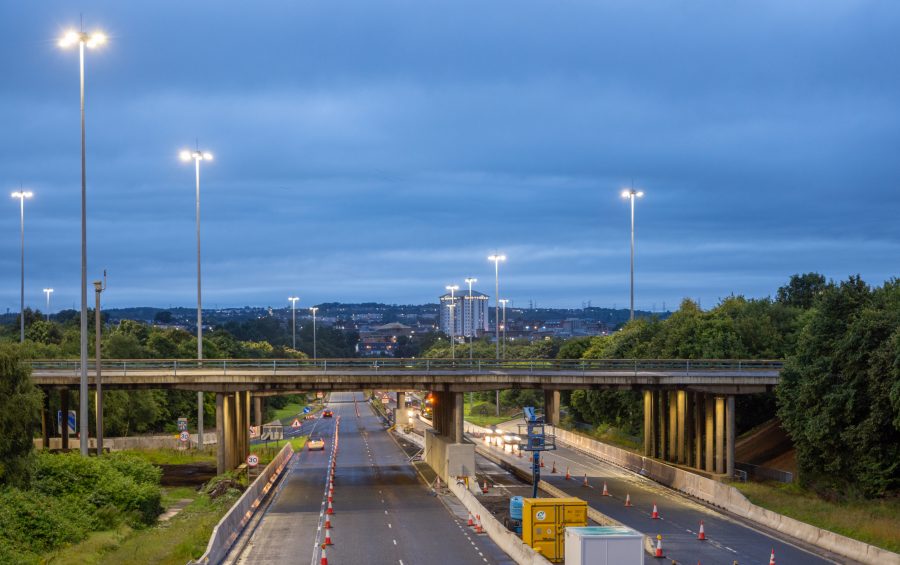

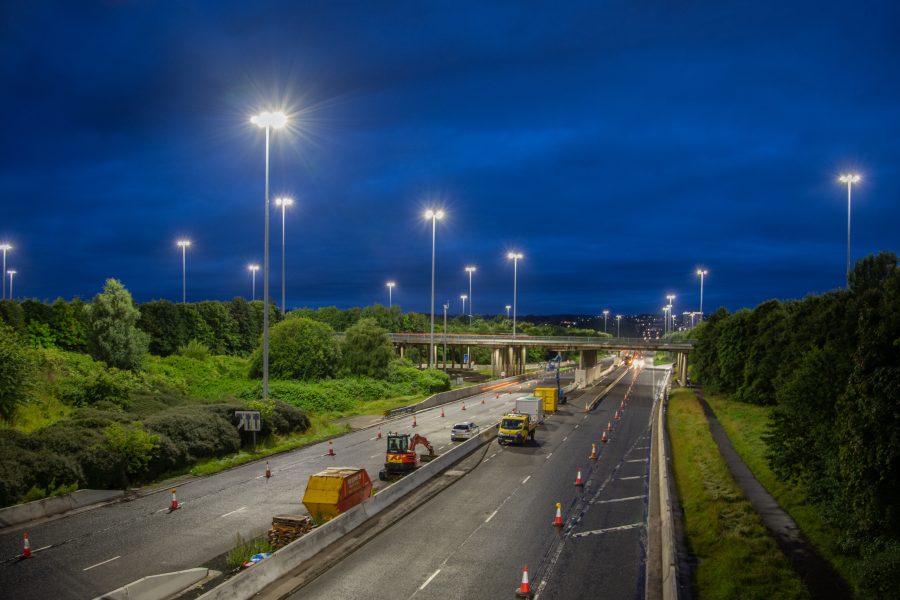

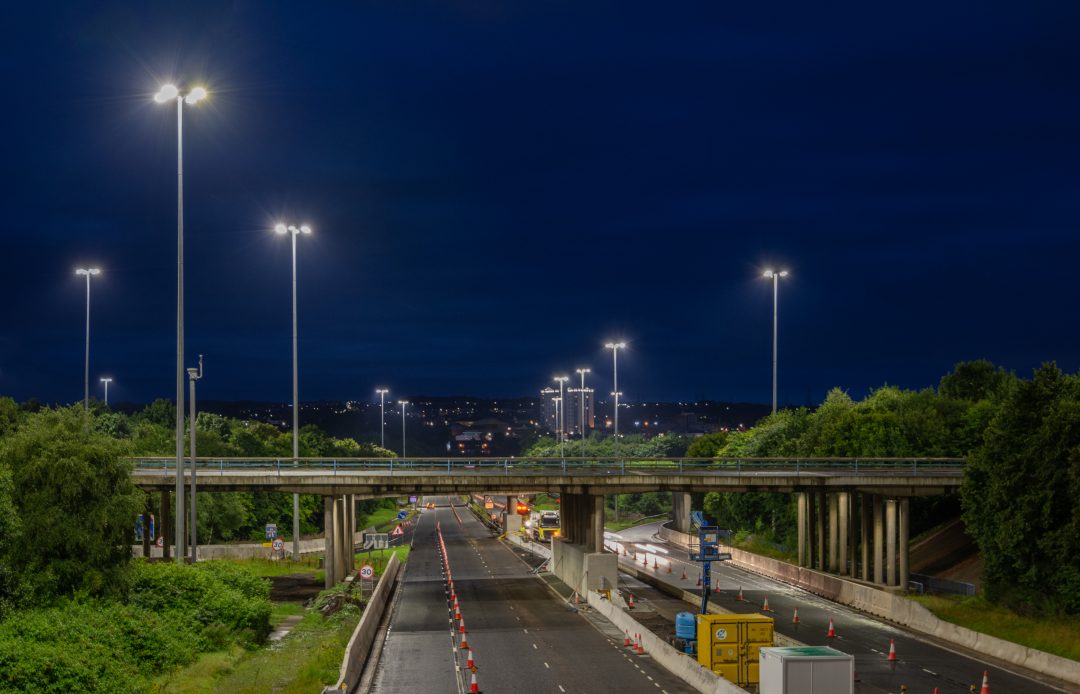

We primarily replaced the original SON-T floodlights with our HEA-Award-Winning P855 LED high mast luminaires. A total of 82 x P855’s were used, along with 11 x P863’s and 2 x FL800’s; mounted on 30m high mast columns.

With 360° rotating STAR-optic®, the P855 accurately controls the light output. Delivering up to 42,000 lumens per luminaire, it reduces glare (achieving up to a G6 glare rating) and delivers good vertical illumination, whilst maximising column spacing.

Scotland Transerv engaged a contractor capable of the design, manufacture and installation which facilitated a single point of contact for all of the works and this proved effective in promptly managing and absorbing changes to scope.

CU Phosco adopted a pragmatic and collaborative delivery approach with Scotland Transerv, allowing the project to be completed on schedule and within budget.

Aled Davies

Scotland Transerv
