P861

Road Lighting

  • Overview
  • Highlights
  • Features & Benefits
  • Downloads

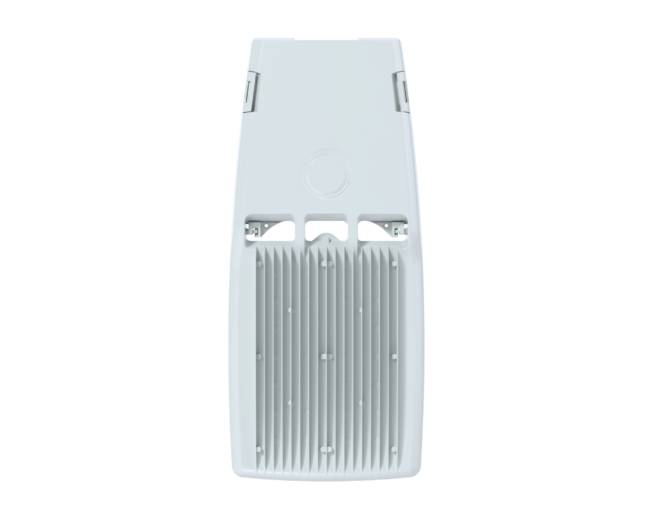

P861
P861
P861
P861
P861

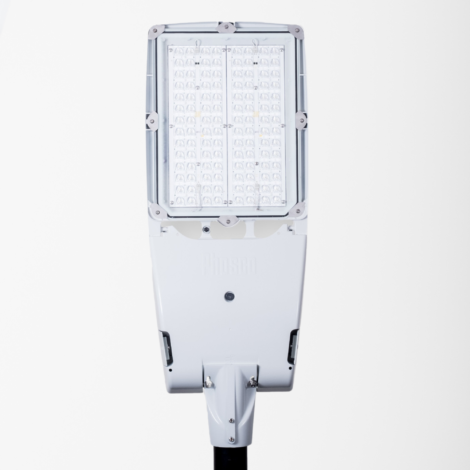

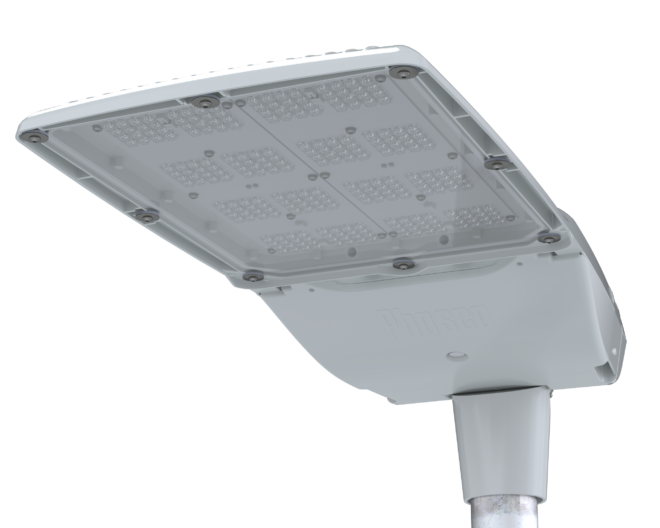

Completing the King of the Road range of Luminaires P861 LED luminaire excels in optical performance, thermal management, compatibility and serviceability, bringing an uncompromised outcome of efficiency and versatility that is future-proofed for an optimised investment.

P861 has been designed to meet most demanding lighting requirements, being easy to install and maintain. It combines latest LED light source with state-of-the-art design, achieving long life for both LEDs and the drivers. The installation is simple and fast, and the luminaire is easily upgradable on-site if required.

P861 is the ultimate solution to replace traditional HID sources. Being lightweight and having a low profile wind area enables the P861 to be safely installed on existing lighting columns and brackets.

This luminaire complies with ETL guidelines for White Light Emitting Diode Lighting Units and is eligible for the Enhanced Capital Allowance (ECA) scheme.

For more information including demonstration and photometric data please email hello@cuphosco.com

Find out more
Diagram indicating highlights of P861

Flat Glass

Vandal resistant toughened glass • Increased light transmission • Suitable for harsh environment • Easy cleaning externally

Programmable Driver

Module Temperature Protection (MTP) • Single level or multi-level dimming • Adjustable output current (AOC) • Constant Light Output (CLO) • DALI dimmable • Integrated surge protection • Driver thermal protection

Air Void

Both gear and optical compartments are separated in order to optimise thermal management

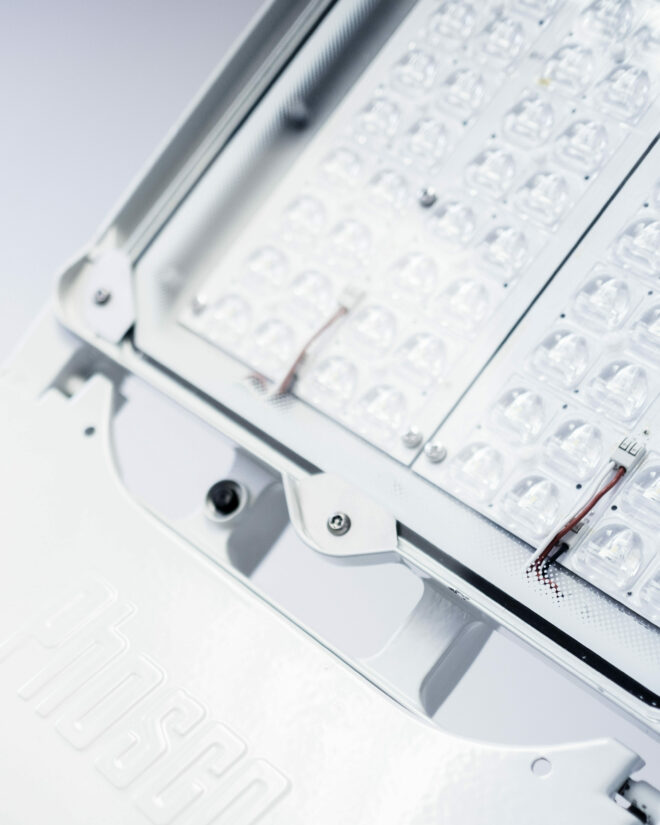

LEDs

Superior light output • High efficacy • Proven reliability • Tight CCT control

Features & Benefits

  • Slim and elegant aesthetics
  • Future-proof and upgradable on site
  • Superior luminaire efficacy up to 140 lm/W
  • Wide range of optics and lumen packages

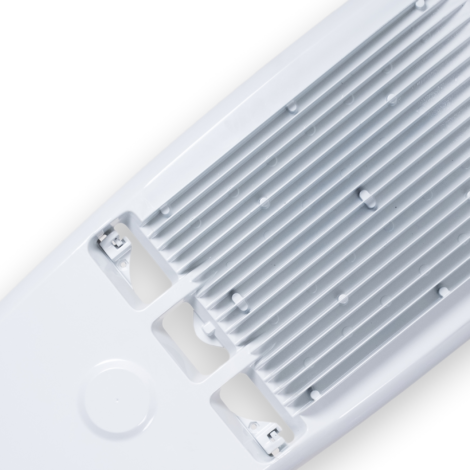

  • Advanced thermal management
  • Maximised savings on energy and maintenance costs
  • Contractor-friendly installation and maintenance
  • Minimal total cost of ownership
  • Up to ME2 lighting class applications
  • Up to G6 glare rating.
  • Dark sky friendly and no upward light
  • Flexible and intelligent lighting control options

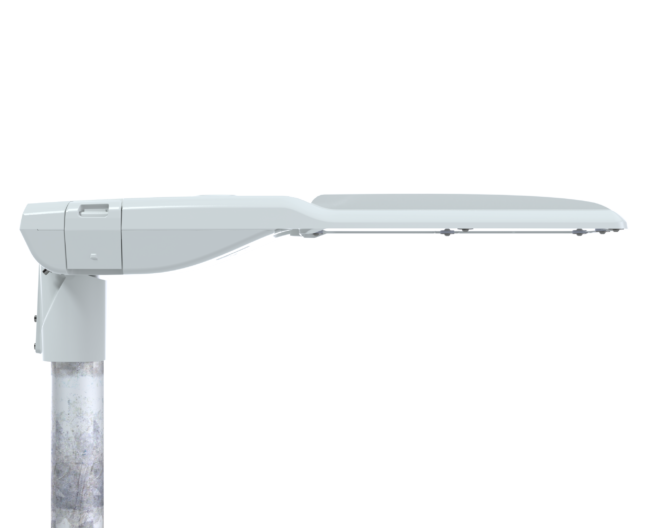

  • Low windage and lightweight
  • IP66 ingress protection
  • 100% recyclable


Exceptional Optical Performance

  • Standard Neutral White LEDs ( CCT = 4000K )
  • Optional Warm White LEDs ( CCT = 3000K )
  • Colour Rendering Index > 70
  • Improved mesopic vision
  • High quality PMMA lenses
  • Exceptional uniformity
  • Dark sky-friendly ( zero upward light )
  • Minimal glare ( up to G6 )
  • P861

    Brochure

  • P861 448 4000 LDT 040122

    Photometry

  • P861 448 4000 IES 010621

    Photometry

  • P861 448 3000 LDT 040122

    Photometry

  • P861 448 3000 IES 190220

    Photometry

Related Products

  • Tapered Tubular Columns

  • Stepped Columns

  • P862

  • P860

Related Projects

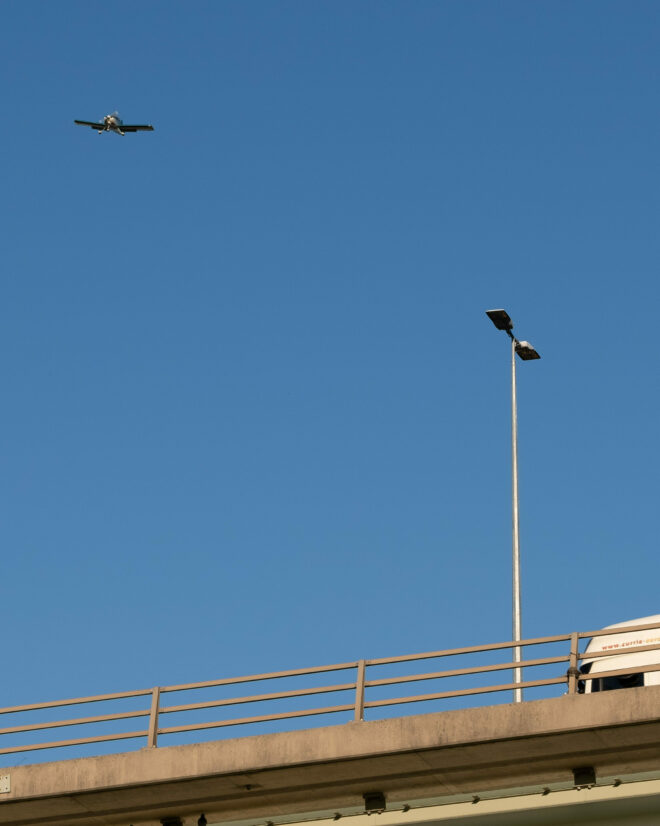

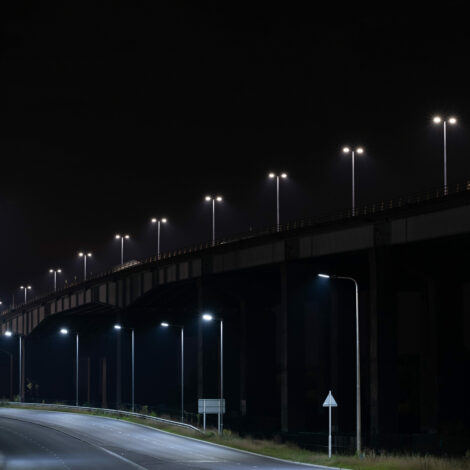

  • Barton Bridge

    Manchester, UK

    Read more
